| RF Specifications | |
| Frequency (MHz): | 840-960MHz |
| Protocols Standards | ISO18000-6C / RAIN RFID |
| Chip Type: | NXP U CODE 7 |
| EPC | 128 bit |
| TID | 96 bit |
| User | None |
| Kill Password | 32 bit |
| Access Password | 32 bit |
| Physical and Environmental Specifications | |
| Substrate: | PET |
| Antenna Material: | Aluminium Etched |
| Dry Inlay Size(mm): | 50×30 [Antenna] |
| Wet Inlay Size(mm): | 54×34 |
| Storage | [-10°C to +75°C] 10% to 60% RH |
| Operating | [ +0°C to +30°C] 10% to 25% RH |
| Shelf Life | 2 years at [+25°C] @40%RH |
| External Characteristic | |

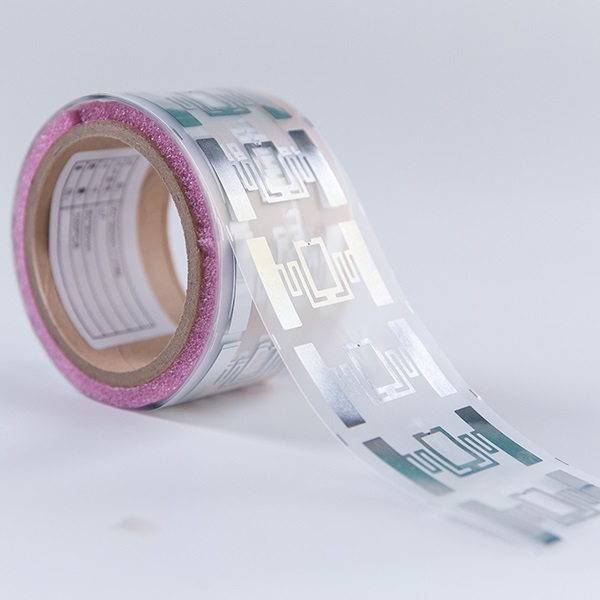

| Delivery Form: | In Roll |
| Inlays per Roll | 5000 Nominal |
