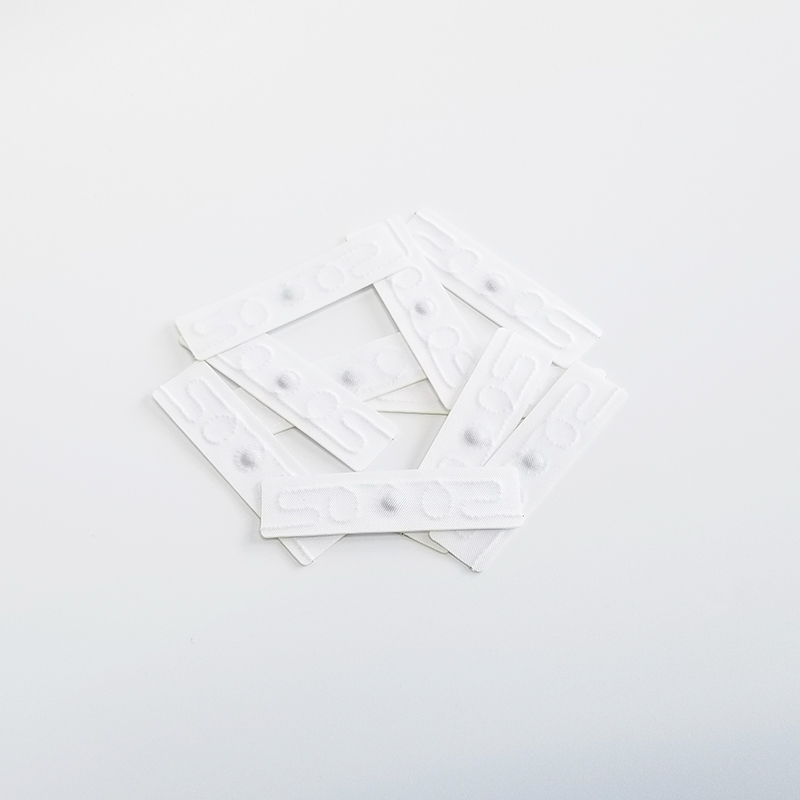

Laundry Tag-LTT5815

Name: Laundry Tag-LTT5815
Brand: WINSON TAG
SKU: LTT5815
Availability: InStock
Rating: 5 (1 reviews)

Item No.: LTT5815

Substrate: Textile
Protocol: ISO18000-6C
Frequency: 860-960MHz
IC Type: Impinj Monza R6P
Size: 58x15x1.5mm(L*W*T)

INQUIRY

Description Parameter

UHF Textile Laundry Tag are used for the intelligent management of laundry. This flexible and durable fabric laundry tag is ideal for tracking linens, uniforms and other garments.Resist high temperature, high humidity and high pressure washing environment.Can be washed, soaked and repeatedly rubbed.Support sewing or direct ironing on clothing.
UHF Textile Laundry Tag, with more than 200 industrial washing cycle times, capable of 60 bar pressure, stable and reliable RF performance.

Compliance	EPC Class1 Gen2; ISO18000-6C
Frequency	860~928 MHz (Can customize frequency)
Chip	Impinj Monza R6P
Memory	EPC	128 Bits	Read & Write
	TID	48 Bits	Read Only
	User	32 Bits	Read & Write
Data Storage	20 years
Lifetime	200 wash cycles or 2 years from shipping date (whichever comes first)
Material	Textile
Dimension	58(L) x 15(W) x 1.5(H)mm (Can customize the sizes)
Storage Temperature	-40℃~ +85 ℃
Operating Temperature	Washing: 90℃(194℉), 15 minutes, 200 cysle Pre-drying in Tumbler: 180℃(320℉), 30minutes Ironer: 180℃(356℉), 10 seconds, 200 cycles Sterilization Process: 135℃(275℉), 20 minutes
Mechanical Resistance	Up to 60 bars
Delivery format	Single
Installation Method	Thread installation
Weight	0.6g
Package	Antistatic bag and carton
Color	White
Power Supply	Passive
Chemicals	Normal common chemicals in the washing processes
RoHS	Compatible
Read distance	Up to 4 meters (EIRP=2W) Up to 2 meters ( With ATID AT880 handheld reader)
Polarization	Liner
