Laundry Tag-LTS5512

Name: Laundry Tag-LTS5512
Brand: WINSON TAG
SKU: LTS5512
Availability: InStock
Rating: 5 (1 reviews)

Item No.: LTS5512

Substrate: Silicone
Protocol: ISO18000-6C
Frequency: 860-960MHz
IC Type: Alien Higgs3
Size: 55x12x2.5mm(L*W*T)

INQUIRY

Description Parameter

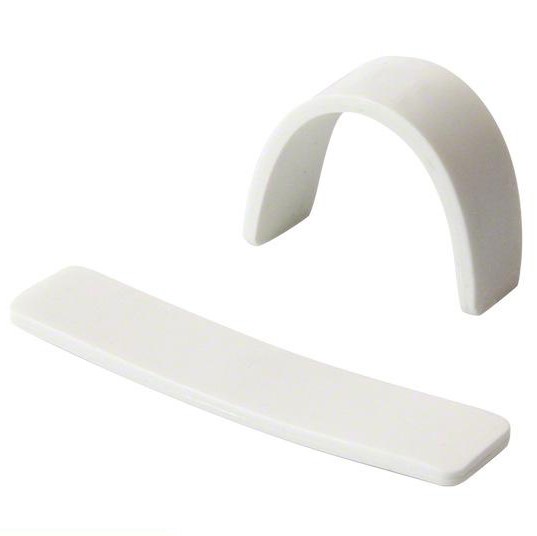

UHF Silicone Laundry Tag are used for the intelligent management of laundry. This flexible and durable silicone laundry tag is ideal for tracking linens, uniforms and other garments.Resist high temperature, high humidity and high pressure washing environment.Can be washed, soaked and repeatedly rubbed.

UHF Silicone Laundry Tag, with more than 300 industrial washing cycle times, capable of 60 bar pressure, stable and reliable RF performance.

Compliance	EPC Class1 Gen2; ISO18000-6C
Frequency	860~928 MHz (Can customize frequency)
Chip	Alien Higgs 3
Memory	EPC	96 Bits	Read & Write
	TID	64 Bits	Read Only
	User	512 Bits	Read & Write
Data Storage	20 years
Lifetime	200 wash cycles or 2 years from shipping date (whichever comes first)
Material	Silicone
Dimension	55(L) x 12(W) x 2.5(H)mm (Can customize the sizes)
Storage Temperature	-40℃~ +85 ℃
Operating Temperature	Washing: 90℃(194℉), 15 minutes, 200 cysle Pre-drying in Tumbler: 180℃(320℉), 30minutes Ironer: 180℃(356℉), 10 seconds, 200 cycles Sterilization Process: 135℃(275℉), 20 minutes
Mechanical Resistance	Up to 60 bars
Delivery format	Single
Installation Method	Sewn into fabric
Weight	3g
Package	Antistatic bag and carton
Color	White / Blue
Power Supply	Passive
Chemicals	Normal common chemicals in the washing processes
RoHS	Compatible
Read distance	Up to 3 meters (EIRP=2W) Up to 1 meters ( With ATID AT880 handheld reader)
Polarization	Liner
