Bluetooth UHF Reader

Item No.: WS-UBR01
Feature Function:
♦ ISO18000-6C, Gen2 Class 1
♦ Support 860-960Mhz
♦ Both of wireless air protocol and USB protocol
♦ Support Windows, Android and iOS operation system
♦ 4 In 1 Bluetooth RFID Reader including Wristband Reader, Desk
Description Parameter Application


Multi-function Bluetooth UHF Reader



WS-UBR01 first generation is a portable dongle UHF Bluetooth reader, which can be connected to the intelligent system platform such as IOS and Android via Bluetooth interface, and also can be used to connect traditional computer PC through USB interface. At the same time, there is 4 different kind of spare parts which are suitable for this multiple function Bluetooth RFID reader, wristband reader plus selfie stick parts, it will be easily be changed into a rod reader and a RFID writer device, which is convenient for industrial inventory / tracking purpose. Normally in industrial field, it will require a special reader equipment in order to read or write electronic label from warehouse, industry area. Multi-function Bluetooth reader considered more user experience in application and expanding a new idea to the RFID system engineer with the miniaturization, low cost and lead any civilian to use UHF reader, it promote better the real popularization of the RFID application system.


Parameter Specification

1. Brand Name:Winson RFID

2. Product No.: WS-UBR01

3. Support UHF tag protocol ISO18000-6C

4. Support operation systems: Windows、IOS、Android

5. Communication interface:BLE4.0、USB

6. Reading distance:50cm(depend on tag size)

7. Work time: continuous working 3 hours, query over 30 000 times.

8. Material: ABS+PC engineer plastic.

9. Battery capacity:550mA

10. Charge method:USB 5V/0.5A, charge time 2 hours

11. LED Indicator: power indicator, connection indicator, working status indicator.

12. Buzzer: Build-in beeper

13. Switch: Twisting switcher

14. Operating Temperature: -20ºC~60ºC

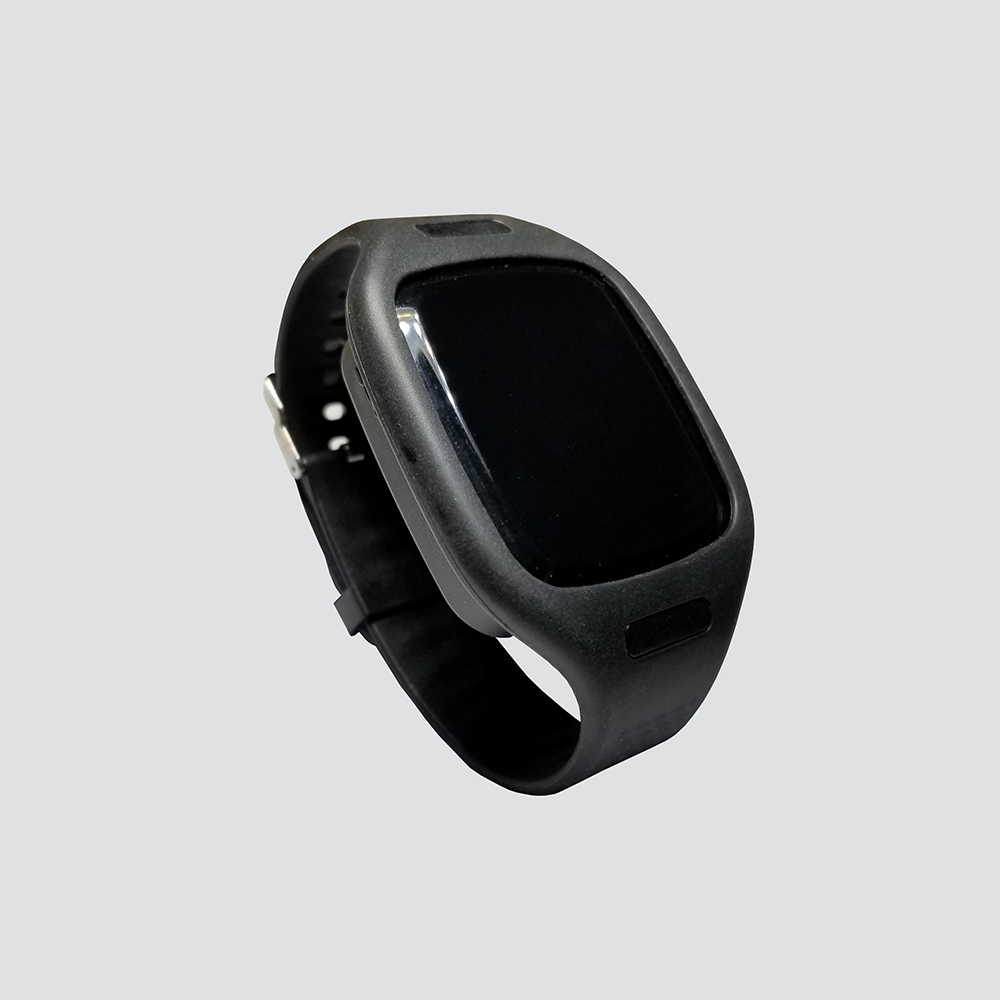

As this smart pocket reader with multiple operating method and quite low cost,  it can be used like a wristband, selfie sticker telescopic rod reader, chest reader and desktop reader, concerning a super small size, highly suggest to have it used in warehouse, logistics, transportation, retailing, and anywhere.
